Trimec ES110 Series Electric Strike

**暫只提供英文版本**

Key Features

• Fail safe/fail secure changeable on site
• Stainless steel striker for extra strength and durability
• Stainless steel locking pins
• Available in 12 or 24Vdc
• Optional mounting kit
• Installation template
• IP56 weather resistant version available
• Suitable For 18mm latch with a 3mm door gap

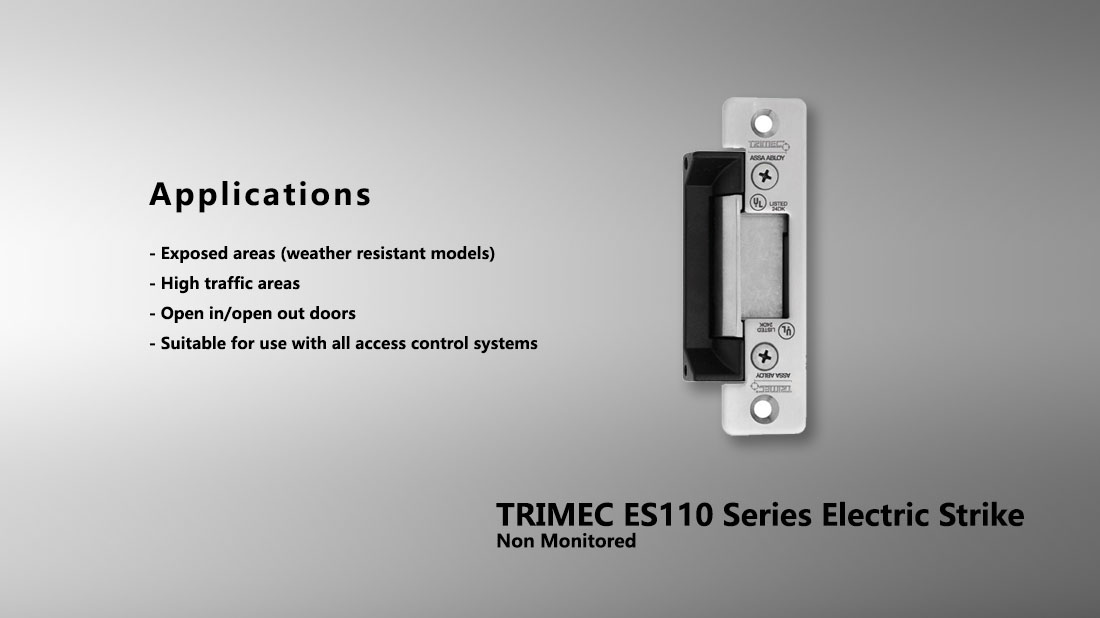

Applications

• Exposed areas (weather resistant models)
• High traffic areas
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
• Weather Resistant Version (IP56) available

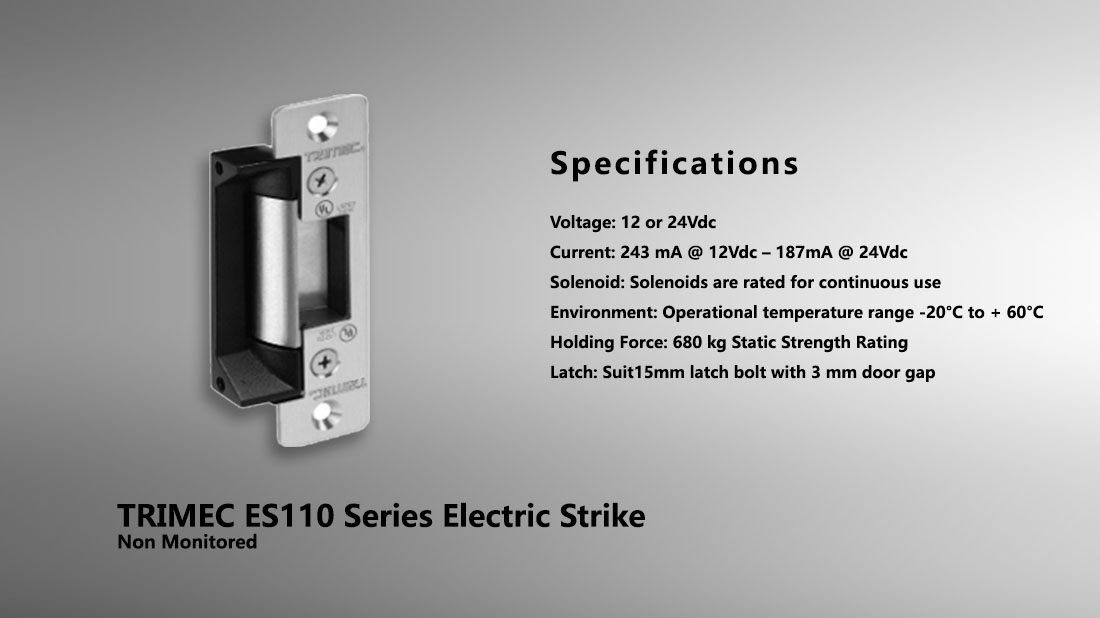

Specifications

• Voltage: 12 or 24Vdc
• Current: 243 mA @ 12Vdc – 187mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: None
• Holding Force: 680 kg Static Strength Rating
• Endurance: Cycle tested to 1,000,000 operations
• Environment: Operational temperature range -20°C to + 60°C,Weather resistant construction available (IP56)
• Body: Cast Aluminium Construction
• Keeper: Stainless Steel
• Latch: Suit15mm latch bolt with 3 mm door gap

Specifications Statement

Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either “Power to Lock” or “Power to Open” on site. The electric strike should not consume current greater than 243mA @ 12Vdc or 187mA @ 24Vdc and have a solenoid suitable for continuous use. Certifications must include CE, C-tick and 4hr fire rating. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.
