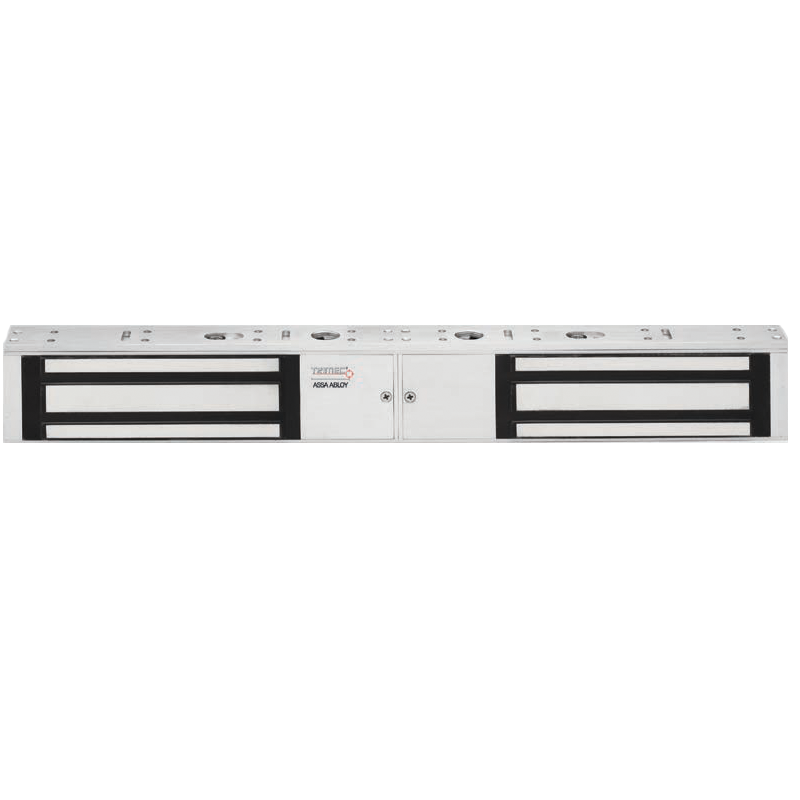

TRIMEC Z4 Double Electromagnetic Lock Monitored

**暫只提供英文版本**

Key Features

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitoring; Hall-Effect and Reed Switch monitoring on all models
• Instantaneous release: Smart electronics on the Z Series electromagnets eliminate residual magnetism

Applications

• Aluminium doors
• Double swing doors
• Access control

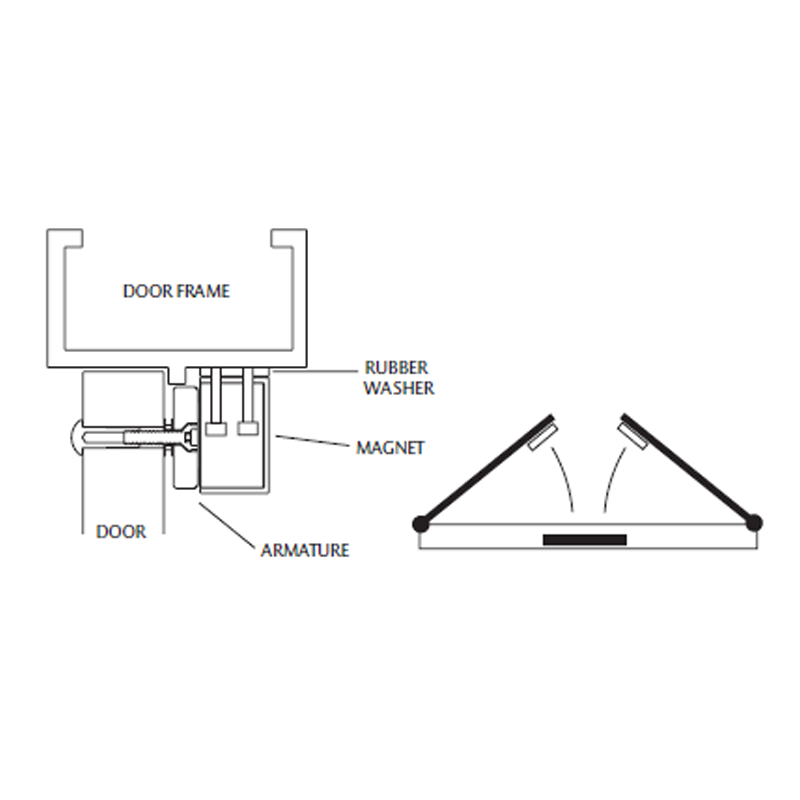

• Surface mount for inswing and outswing doors

Monitoring

• Hall / Bond Monitoring
• This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
• Reed Switch Monitoring
• An integrated reed switch monitors the door position separately (it monitors the position of the door)

Standards and Compliance

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• CE Approved
• C-Tick Certified

Product Specifications

• Holding Force: 500kg – 560kg

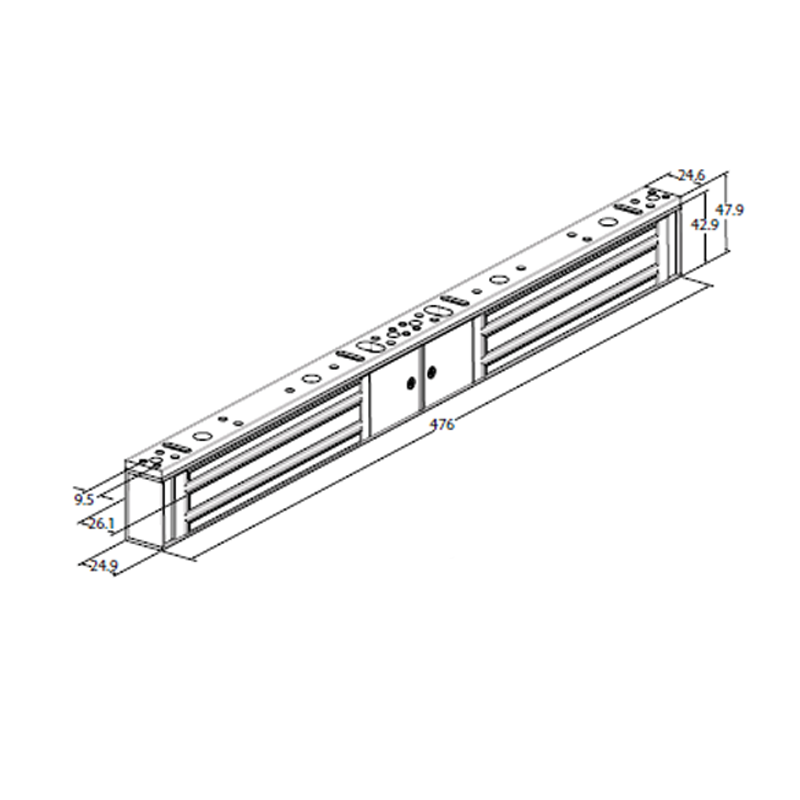

• Dimensions: (L)476 x (H)48 x (D)27 mm
• Voltage: 12Vdc/ 24Vdc ±10%
• Current: 900mA @ 12Vdc 450mA @ 24Vdc
• Monitoring: Hall Effect / Bond sensing and Reed Switch
• Operating Temperature: -10 to 55 Degrees
• Operating Humidity: 0 – 95%
