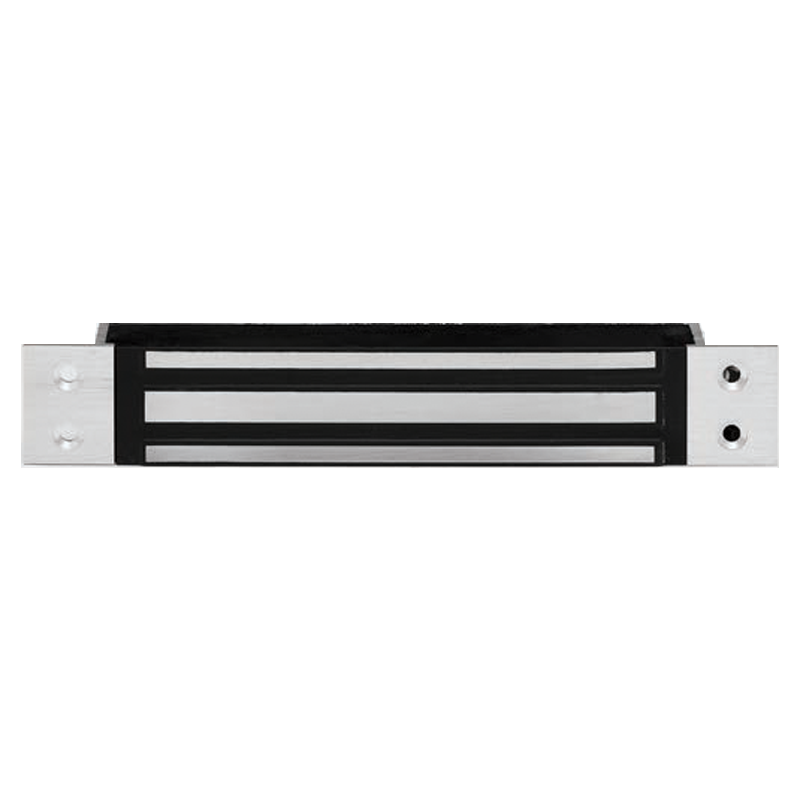

TRIMEC Z4 Recessed Electromagnetic Lock Non Monitored

**

Key Features

• Fail-safe: unlocks when power is removed

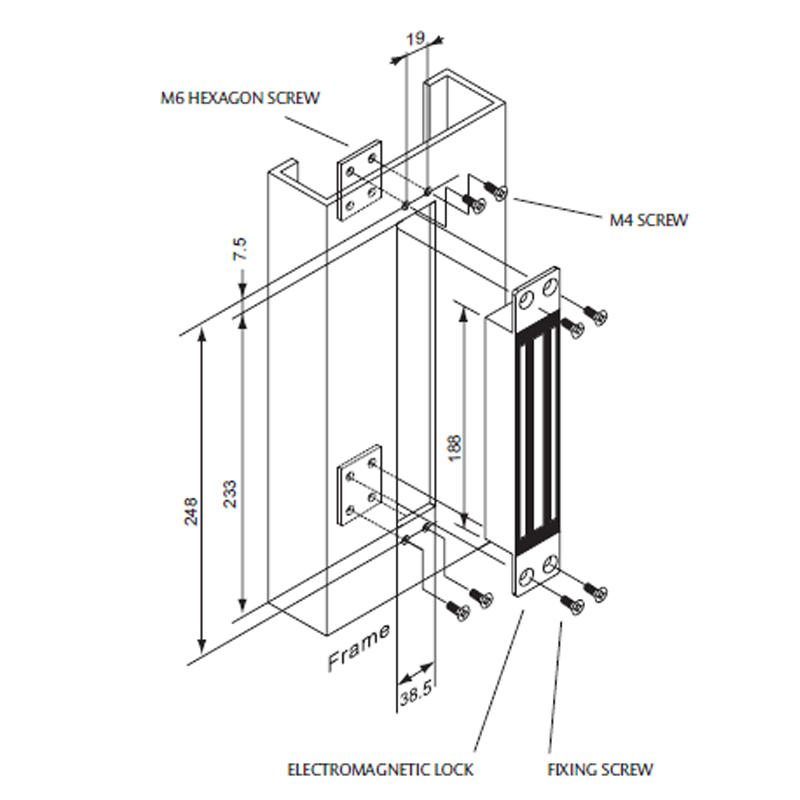

• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf

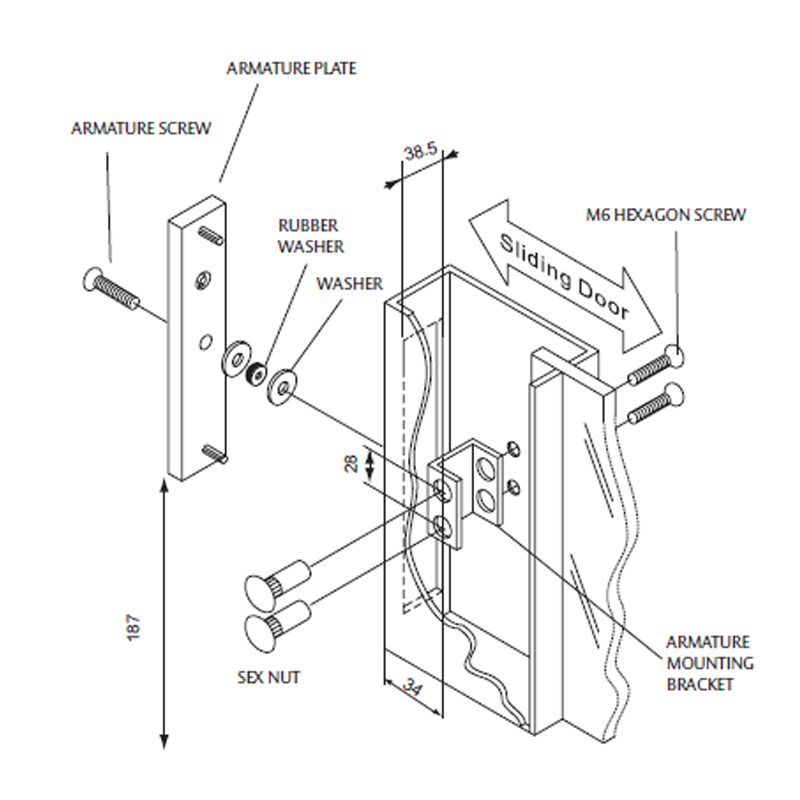

• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitored versions: Hall-Effect status monitoring available on some models

Applications

• Various sliding door applications

Standards and Compliance

• CE Approved
• C-Tick Certified

Specifications

• Holding Force: 250kg – 280kg
• Dimensions: (L)182 x (H)42 x (D)23 mm
• Voltage: 12Vdc/ 24Vdc ±10%
• Current: 450mA @ (12Vdc) 225mA @ (24Vdc)
• Monitoring: None
• Operating Temperature: -10 to 55 Degrees
• Operating Humidity: 0 – 95%
