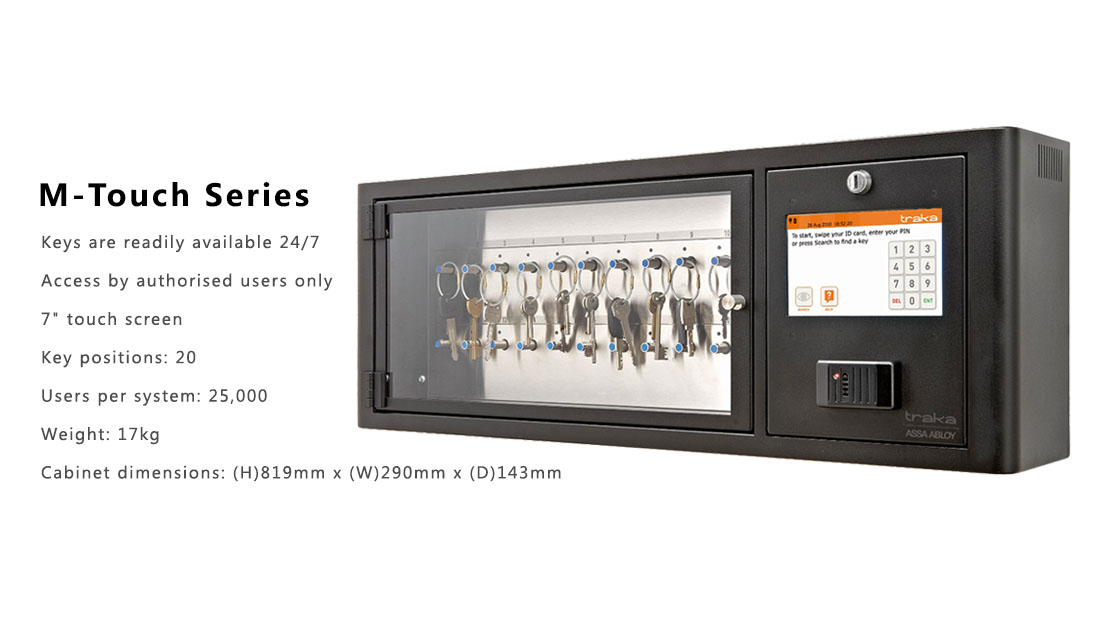

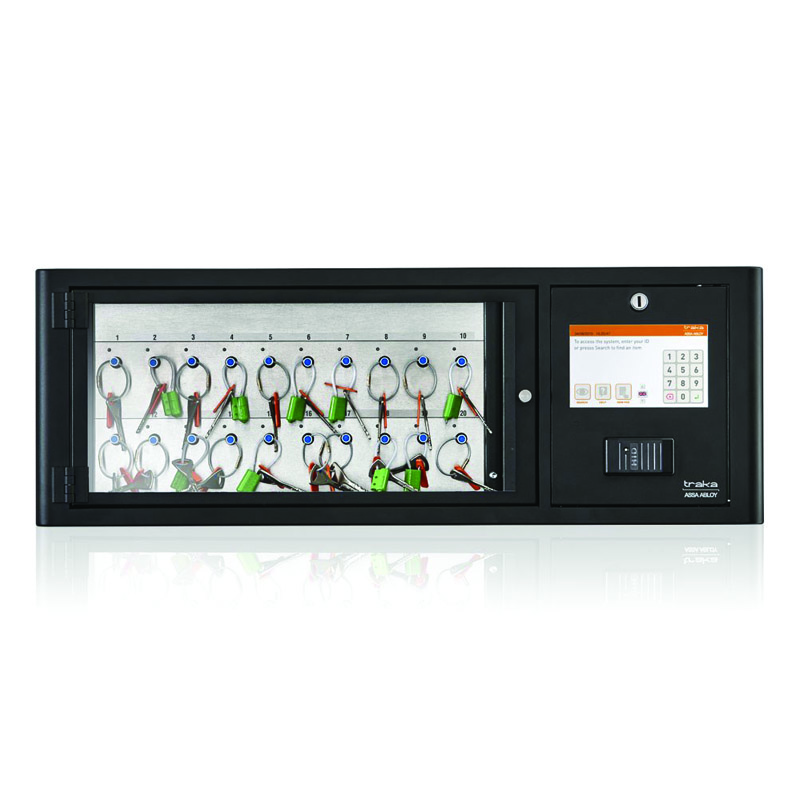

Traka M-Touch key management cabinet

**

General

• Keys are readily available 24/7
• Access by authorised users only
• 7″ touch screen
• Full audit trail of all users and key transactions
• Secure storage and management for up to 20 keys
• Easy access via PIN code, card reader and biometric fingerprint reader
• Battery backup
• Soft close-down with no data loss in the event of long term power failure

Standalone

• Cutting edge key management solution that operates entirely independently of your IT system
• Standalone ‘plug and play’ system
• No network, PC or external connection required
• USB port for import/export of reports via memory stick
• Automatic data back up to removable SD card

Networked

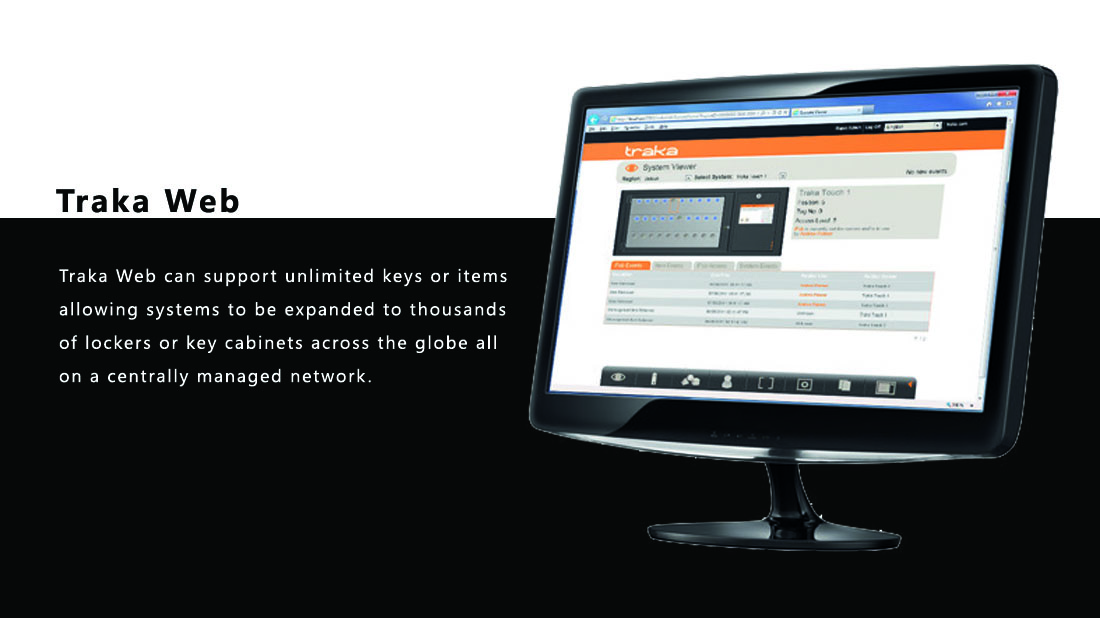

• Full network capability and management through Traka Web
• Centralised administration and reporting

Specifications

• Cabinet dimensions: (W)819mm x (H)290mm x (D)143mm
• Weight: 17kg • Power supply: Input: 100-240V AC, Output: 15V DC
• Battery backup: DC12v 7Ah
• Power consumption: 35W max
• Cabinet material: Zintec steel
• Colour options: Black fine texture (TLP-F652-T) or Cream Gloss (RAL1013)
• Door material: clear polycarbonate or solid metal
• Operating temp: Ambient, for indoor use only (-5°C to +50°C at 95% non-condensing relative humidity)
• Mounting: Wall (comes with a bracket for easy mounting)
• Key positions: 10-20 (40 double density)
• Receptor strip support: Locking, non-locking, with buttons, without buttons, double density (40 positions), combination of both – all with Tri-colour LED’s
• Users per system: 25,000 (more on request)
• Communications: Ethernet (TCP/ IP) 10/100 MB
• Reader interface: Clock/ data, Wiegand, Serial (RS232/ TTL), PIN only
• Alarm interface: 3x1A/ 24V dry contact relay contacts for connecting to alarms, access control systems, CCTV etc.
• Certifications: CE, FCC, CSA, ROHS
