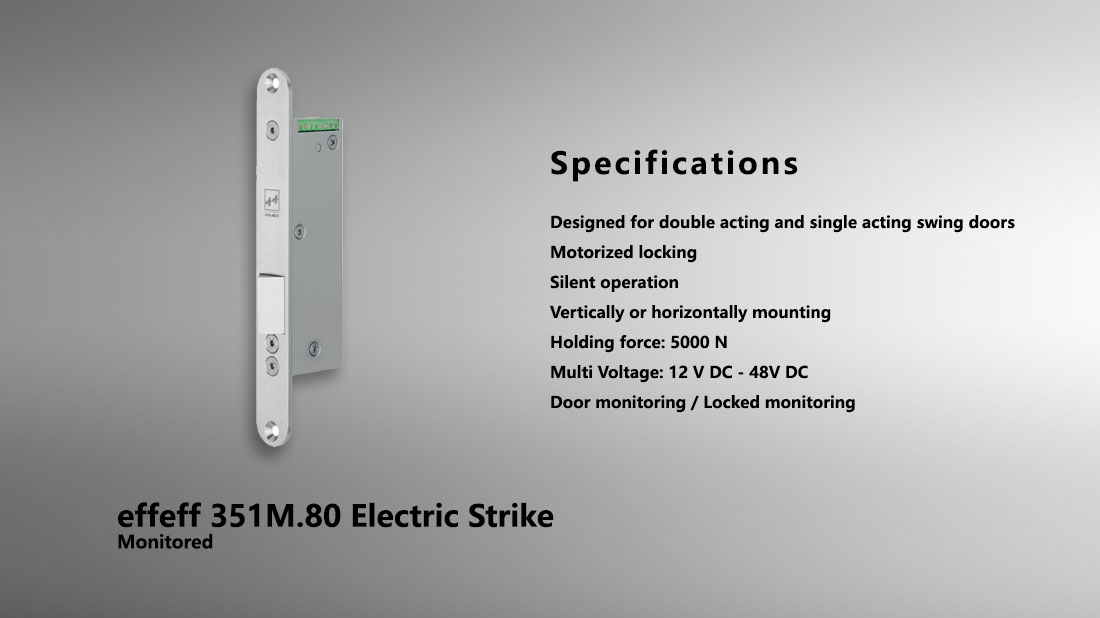

Effeff 351M Electric strike

**

Features

• Designed for double acting and single acting swing doors
• Motorized locking
• Silent operation
• Vertically or horizontally mounting
• 5000 N holding force
• Operates with up to 5000N of side pressure
• Multi Voltage: 12 V DC – 48V DC
• Door monitoring
• Locked monitoring
• Dimensions compatible to 351U80

Standardsand Compliance

• Factory tested: 1,000,000 cycles
• CE Certified applied
• EltVTR applied (german directive
• NFS 61937 applied (french standard)
• Suitable for fire door application (note domestic standards)

Function

• As soon as the door stays in aligned position with the lock, the prism shaped bolt moves motorized into the strike plate and locks the door. As long as power is on, the bolt is locked.
• As soon as the power is switched off, the bolt gets immediately unlocked and the door is accessible. When moving the door, the V-shaped strike plate slides the bolt in – without electric power.

Technical data

• Voltage: 12V DC – 48V DC
• DIN-direction:Universal
• Monitoring contact (RR):Yes
• Diode (05):Yes
• Anchor contact: Yes
• Fail-unlocked:Yes
• Break-in resistance: 5000N
• Material housing: Stainless steel
• material bolt: Steel
• Operating temperature range:-15 °C to +50 °C
• Bolt throw:10 mm
• Installation position: Universal
• Rebate clearance: 3mm (2mm – 4,5mm)
• Max. pre-load unlocking:5000 N
• Height: 200mm
• Width: 25mm
• Depth: 42mm
• Operating voltage: ± 10%
• Max. current consumption in continuous operation 12 V DC:480 mA
• Max. current consumption in continuous operation 24 V DC:270 mA
• Max. current consumption in continuous operation 48 V DC:150 mA
• Max. current consumption with motor operation (approx. 1 s) 12 V DC:880 mA
• Max. start current consumption with motor operation (approx. 1 s) 24 V DC:270 mA
• Max. current consumption with motor operation (approx. 1 s) 48 V DC:270 mA
