TRIMEC Z8 Double Electromagnetic Lock Non Monitored

**暫只提供英文版本**

Key Features

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Instantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetism

Applications

• Aluminium doors
• Glass doors
• IT Storage rooms
• Access control
• Surface mount for inswing and outswing doors

Standards and Compliance

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• CE Approved
• C-Tick Certified

Specifications

• Holding Force: 1100kg – 1160kg

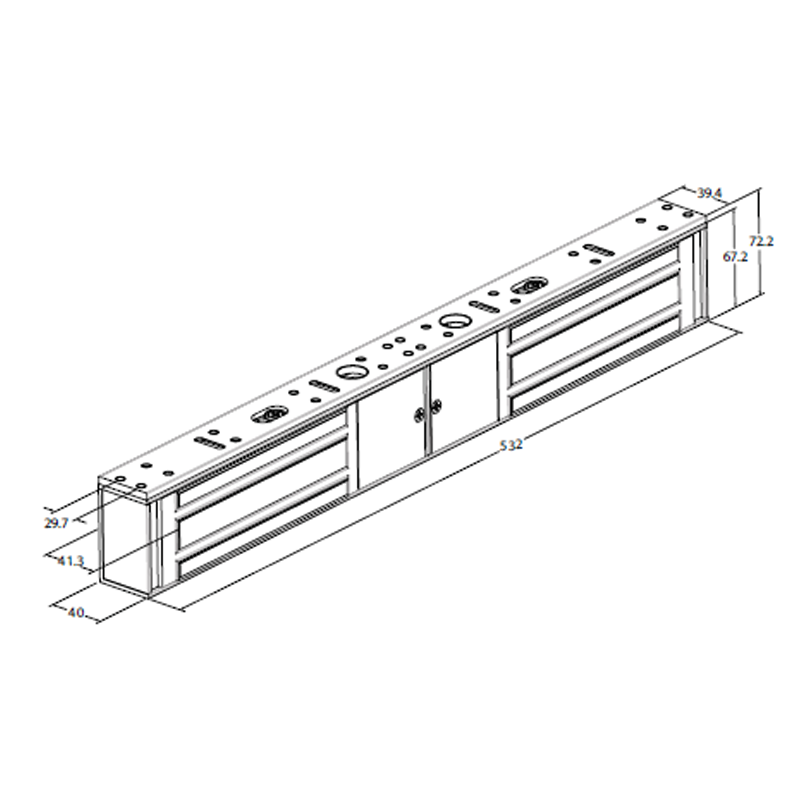

• Dimensions: (L)532 x (H)72 x (D)40 mm
• Voltage: 12Vdc/ 24Vdc ±10%
• Current: 1024mA @ 12Vdc 512mA @ (12Vdc)
• Monitoring: None
• Operating Temperature: -10 to 55 Degrees
• Operating Humidity: 0 - 95%
