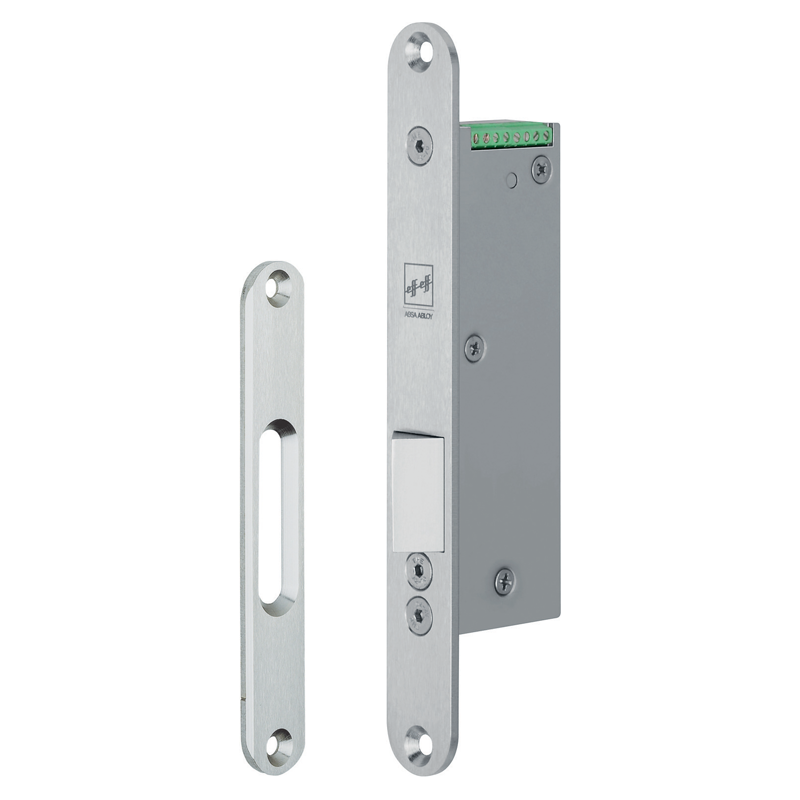

Designed for double acting and single acting swing doors
Motorized locking
Silent operation
Vertically or horizontally mounting
5000 N holding force
Operates with up to 5000N of side pressure
Multi Voltage: 12 V DC - 48V DC
Door monitoring
Locked monitoring
Dimensions compatible to 351U80
Standardsand Compliance
Factory tested: 1,000,000 cycles
CE Certified applied
EltVTR applied (german directive
NFS 61937 applied (french standard)
Suitable for fire door application (note domestic standards)
Function
As soon as the door stays in aligned position with the lock, the prism shaped bolt moves motorized into the strike plate and locks the door. As long as power is on, the bolt is locked.
As soon as the power is switched off, the bolt gets immediately unlocked and the door is accessible. When moving the door, the V-shaped strike plate slides the bolt in – without electric power.
Technical data
Voltage: 12V DC - 48V DC
DIN-direction:Universal
Monitoring contact (RR):Yes
Diode (05):Yes
Anchor contact: Yes
Fail-unlocked:Yes
Break-in resistance: 5000N
Material housing: Stainless steel
material bolt: Steel
Operating temperature range:-15 °C to +50 °C
Bolt throw:10 mm
Installation position: Universal
Rebate clearance: 3mm (2mm - 4,5mm)
Max. pre-load unlocking:5000 N
Height: 200mm
Width: 25mm
Depth: 42mm
Operating voltage: ± 10%
Max. current consumption in continuous operation 12 V DC:480 mA
Max. current consumption in continuous operation 24 V DC:270 mA
Max. current consumption in continuous operation 48 V DC:150 mA
Max. current consumption with motor operation (approx. 1 s) 12 V DC:880 mA
Max. start current consumption with motor operation (approx. 1 s) 24 V DC:270 mA
Max. current consumption with motor operation (approx. 1 s) 48 V DC:270 mA
