Trimec ES8000 V-lock Electromechanical Bolts

Product Specifications

  • Voltage: 12 to 24Vdc, Voltage Tolerance 12V (+15% - 0%) 24V(+/- 15%)
  • Current: Minimum 1 Amp Regulated Supply
  • Monitoring: COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mA
  • Strength: Maximum 1000kg (with supported strike plate)
  • Endurance: 300,000 operations
  • Environment: Operational temperature range -20°C to + 60°C
  • Bolt: 11mm diameter, 20.5mm projection


Key Features

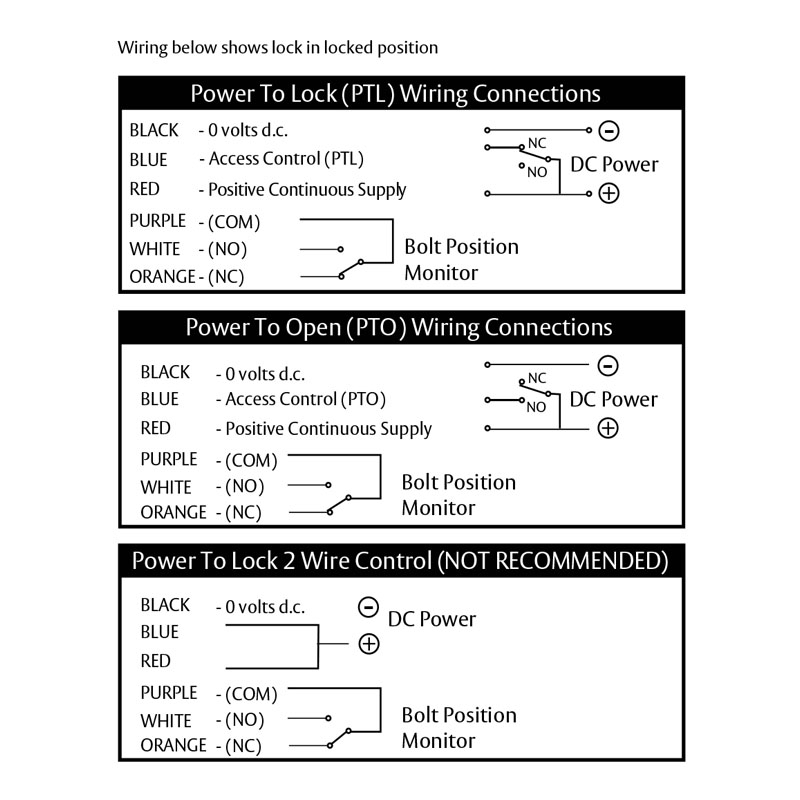

  • Side load - pre load capable lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. (1 x permanent power, (positive 12-24Vdc) wire. Negative (0 volt return) wire, and 1 x switching input (positive 12-24Vdc) wire
  • Door misalignment of up to 3.5mm +/-
  • Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurable
  • High torque Motorised locking and unlocking (3 wire mode)
  • High Speed Operation. Unlocks in less than 1 second

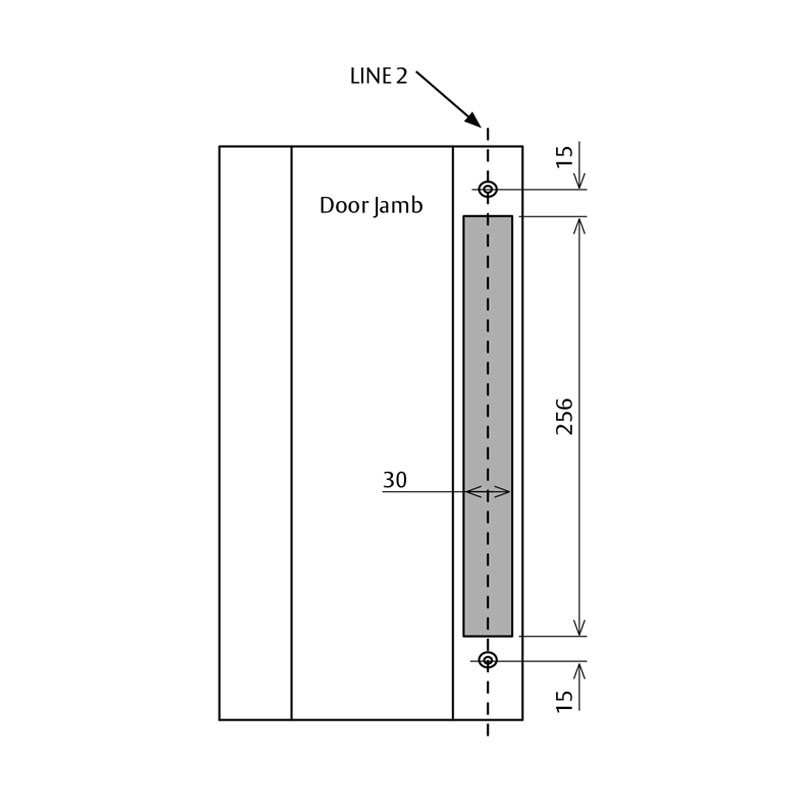

  • Surface Mount Accessory Kit. Ideal for 180° swing through glass door applications
  • Multiple Orientation – Interior Doors. Can be mounted vertically or horizontally (For exterior doors where water ingress is likely ES8000 must be mounted horizontally)

Monitored

  • COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mA

Applications

  • Misaligned doors
  • Timer Doors
  • Glass Doors

Standards and Compliance

  • SCEC Endorsed (Intruder Resistant Bracket Required)
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)

Specifications

  • Voltage 12 to 24Vdc, Voltage Tolerance 12V (+15% - 0%) 24V(+/- 15%)
  • Current Minimum 1 Amp Regulated Supply
  • Monitoring COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mA
  • Security Passed S3 (AS4145.2 -1993)
  • Strength Maximum 1000kg (with supported strike plate)
  • Side Load Side Load rated: Motorised Unlocking – 15kg max at bolt / Fail Safe Unlocking – 3kg max at bolt
  • Endurance 300,000 operations
  • Environment Operational temperature range -20°C to + 60°C

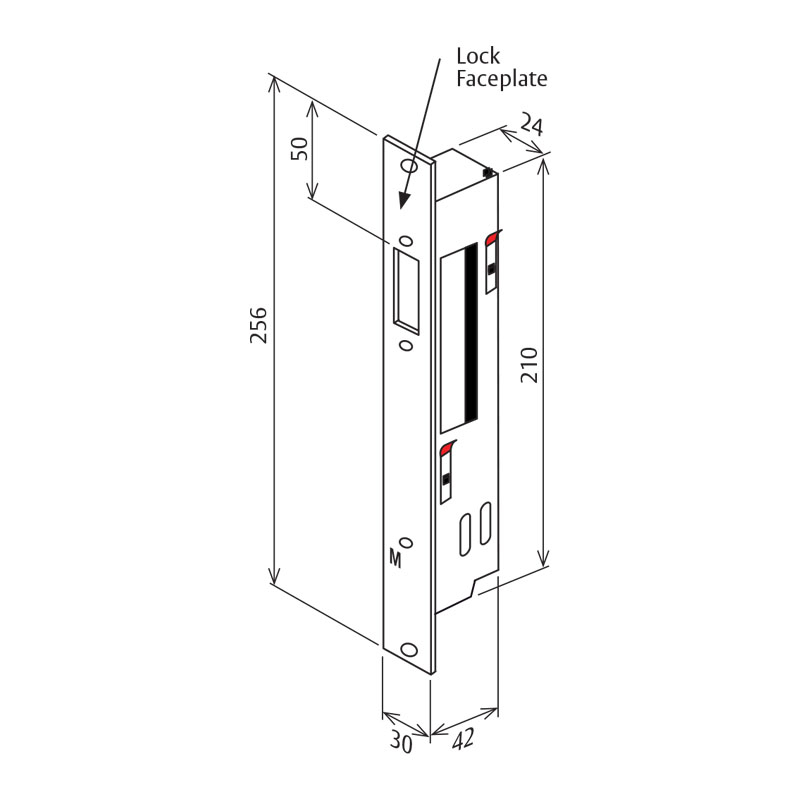

  • Lock Body Stainless Steel Lock Body and Faceplate
  • Bolt 11mm diameter, 20.5mm projection

Specifications Statement

The lock must be a high torque motorised bolt with Preload tolerance. The strike plate must be shaped in a V format to accommodate for misaligned doors. Lock will unlock with up to 15kg of side pressure and will be poweredwith 12-24v and draw no more than 1000mA. The lock must be configurable for Power to Lock (Fail Safe) or Power to Open (Fail Secure). The lock must be triggered with a magnet positioned in strike plate, and be monitored for locked unlocked and door position.
