Trimec ES2100 Series Monitored Electric Strike

Product Specifications

  • Voltage: Variable 10–30Vdc
  • Current: 200mA @ 12Vdc – 120mA @ 24Vdc
  • Solenoids: Rated for continuous use
  • Monitoring: Latch / Strike locked / Door position (reed switch)
  • Holding force: 1000kg static strength rating
  • Latch: Suitable for 15mm latch bolt with 3mm door gap
  • Environment: Operational temperature range -20ºC to +60ºC


Key Features

  • Patented field selectable fail safe/fail secure
  • Multi voltage 10–30Vdc
  • 1000kg holding force
  • 4hr fire rating
  • Mounting tabs as supplied standard
  • Australian designed and made

Fully monitored

  • Integrated door position (reed) switch
  • Solenoid/Locked
  • Latch position

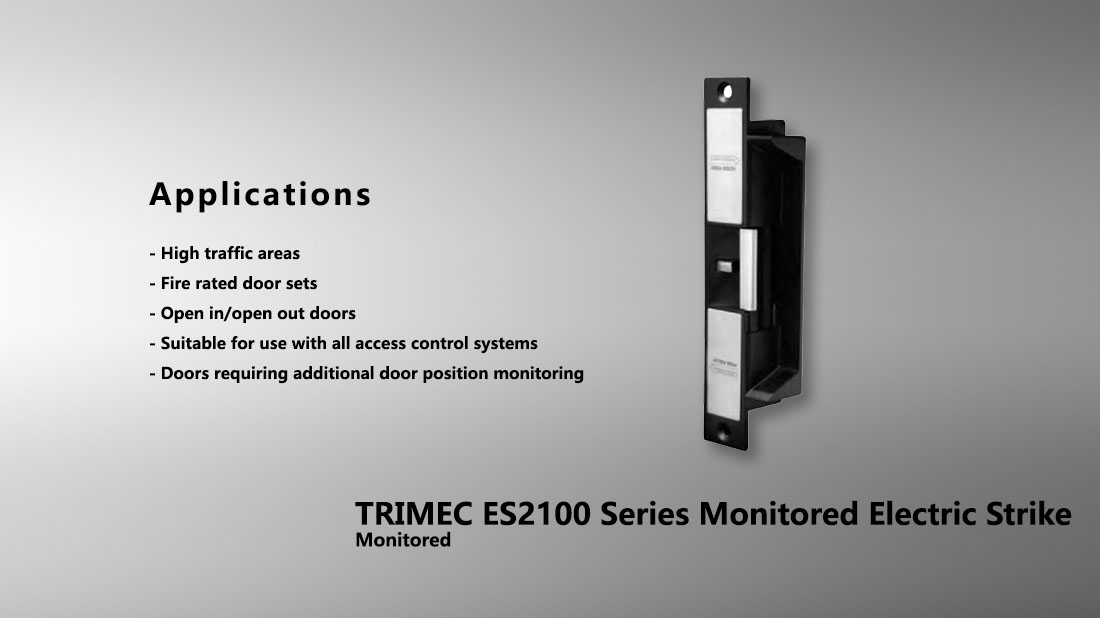

Applications

  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems
  • Doors requiring additional door position monitoring

Standards and Compliance

  • (Security) Australian Lock Standard (AS4145.2.2008)
  • (Durability) Australian Lock Standard (AS4145.2.2008)
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
  • CE Approved
  • C-Tick Certified

Specifications

  • Voltage: Variable 10–30Vdc
  • Current: 200mA @ 12Vdc – 120mA @ 24Vdc
  • Solenoids: Rated for continuous use
  • Monitoring: Latch /Strike locked / Door position (reed switch)
  • Holding force: 1000kg static strength rating
  • Endurance: Cycle tested to 1.5 million operations
  • Latch: Suitable for 15mm latch bolt with 3mm door gap
  • Body: Stainless Steel
  • Keeper: Stainless Steel
  • Environment: Operational temperature range -20ºC to +60ºC

Specifications Statement

The strike should be constructed of solid stainless steel, have a minimum holding force of 1000kg and an endurance rating of 1.5 million cycles. Monitoring must include independent latch and solenoid monitoring. The strike shall have an integrated reed switch for door position monitoring and used in conjunction with Lockwood 3572MAGSC mortice lock or tubularlatch with door magnet. Certifications must include CE, C-tick and 4 hr fire rating.
